Stainless Steel Water Tanks
Stainless steel water tanks are the premium choice for drinking water storage, offering exceptional durability, superior hygiene, and long-term reliability. Manufactured from --AISI 304 (18/10) food-grade stainless steel**, they provide outstanding corrosion resistance while preserving the quality and purity of the stored water.
Stainless steel (INOX A.I.S.I. 304 BA) with thickness 0,40 mm and 0.50 mm.
High density stonewool

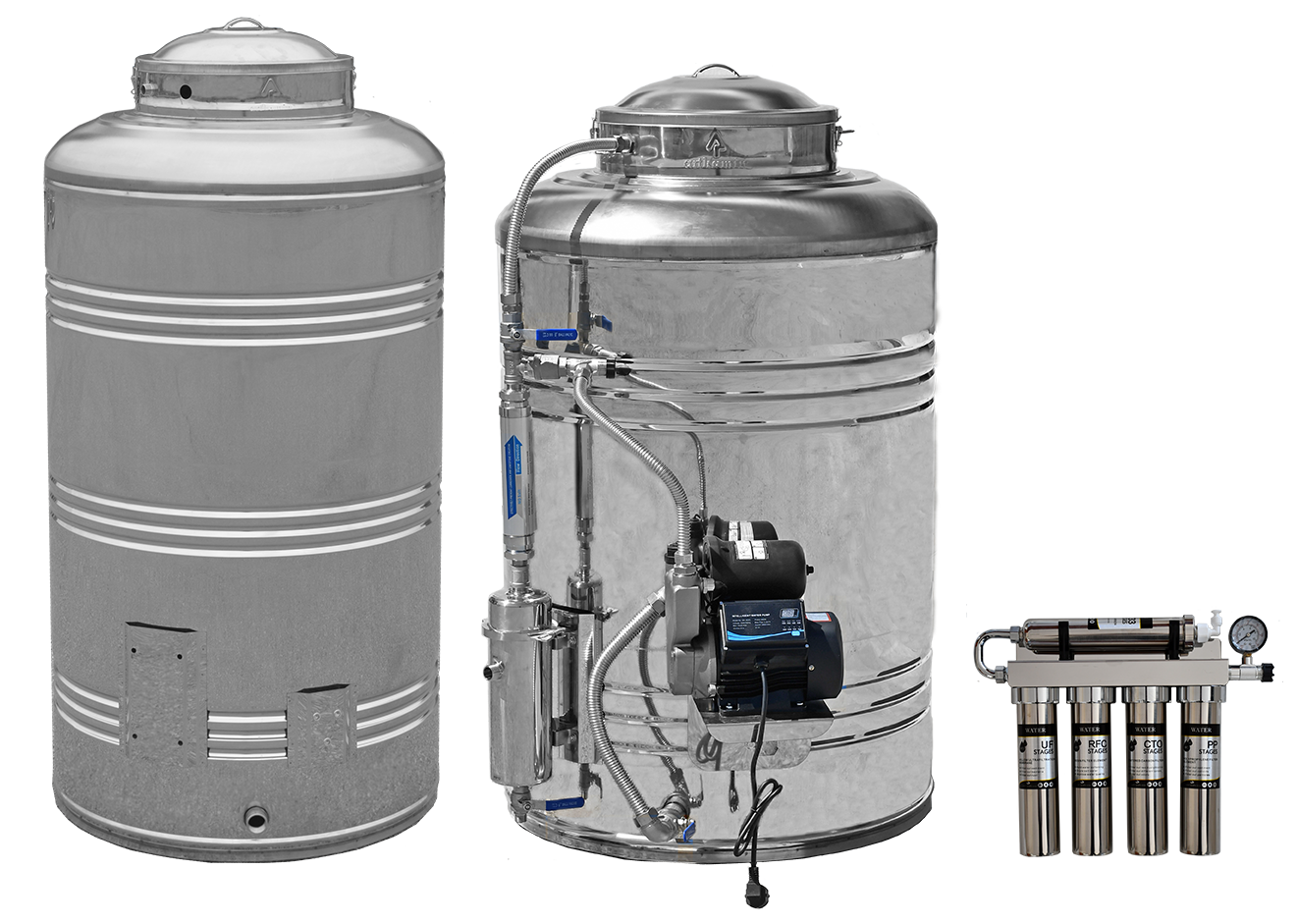

Upon request, all stainless steel tanks are available with factory-integrated mounting brackets designed to accommodate the water treatment and dispensing kit.
Products
- 500 L Water Tank – Height: 1.3 m, Diameter: Ø740 mm
- 600 L Water Tank – Height: 1.55 m, Diameter: Ø740 mm
- 700 L Water Tank – Height: 1.8 m, Diameter: Ø740 mm
- 800 L Water Tank – Height: 1.3 m, Diameter: Ø930 mm
- 950 L Water Tank – Height: 1.55 m, Diameter: Ø930 mm
- 1,100 L Water Tank – Height: 1.8 m, Diameter: Ø930 mm
Technical Specifications
- Material: AISI 304 (18/10) Stainless Steel
- Wall Thickness: 0.60 mm & 0.70 mm
- Welding Method: GTAW, RSEW
- Manhole Diameter: Ø400 mm
- Lid with Handle
- Lid Secured with Clamps
- Inlet: Ø25.8 mm (3/4")
- Outlet: 1", 1½", or 2" Female Thread
- Overflow: 1/2" Male Thread
Uses
Residential Homes & Apartment Buildings (Drinking Water Storage)
Retail Stores & Food Service Businesses
Hotels & Hospitality Facilities
Industrial & Manufacturing Facilities
Agricultural Applications
Livestock Farms
Water Treatment Systems
Boreholes & Water Supply Networks
Professional Equipment with High Hygiene Requirements
